Blue Classic Wire Rope Hooks
Alloy Swivel Hooks w/ Latch
Alloy Eye Hooks w/ Latch
Alloy Swivel Hooks w/ Ball Bearing and Latch
Alloy Swivel Hooks with Latch
| Part # | Trade Size | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | R (in) |
|---|---|---|---|---|---|---|---|---|---|
| ASH0100A | 1t | 0.99 | 5.81 | 2.86 | 2.02 | 4.57 | 0.85 | 0.63 | 1.24 |
| ASH0150A | 1-1/2t | 1.50 | 6.81 | 3.06 | 2.52 | 5.43 | 1.26 | 0.79 | 1.50 |
| ASH0200A | 2t | 2.96 | 8.58 | 3.84 | 3.27 | 6.81 | 1.69 | 0.91 | 1.97 |
| ASH0300A | 3t | 3.66 | 8.84 | 4.23 | 3.27 | 7.01 | 1.50 | 0.98 | 1.97 |
| ASH0500A | 5t | 6.76 | 10.98 | 5.20 | 4.21 | 8.74 | 2.05 | 1.34 | 2.76 |
| ASH0700A | 7t | 11.11 | 13.23 | 6.46 | 4.72 | 10.55 | 2.09 | 1.97 | 2.99 |
| ASH1100A | 11t | 21.38 | 16.46 | 7.60 | 5.47 | 13.27 | 2.87 | 2.36 | 3.15 |
Alloy Eye Hooks with Latch
| Part # | Trade Size | Weight (lbs) | C (in) | D (in) | E (in) | J (in) | K (in) |
|---|---|---|---|---|---|---|---|
| 0120SA | 1.25t | 0.73 | 3.23 | 0.77 | 0.83 | 0.79 | 1.26 |
| 0160SA | 1.6t | 1.04 | 3.66 | 0.98 | 0.91 | 0.87 | 1.38 |
| 0250SA | 2.5t | 1.68 | 4.16 | 1.06 | 1.05 | 0.91 | 1.52 |
| 0320SA | 3.2t | 2.20 | 4.79 | 1.28 | 1.22 | 1.06 | 1.68 |
| 0540SA | 5.4t | 4.10 | 5.75 | 1.50 | 1.47 | 1.26 | 2.00 |

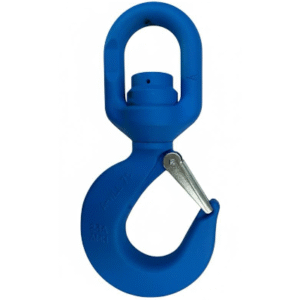

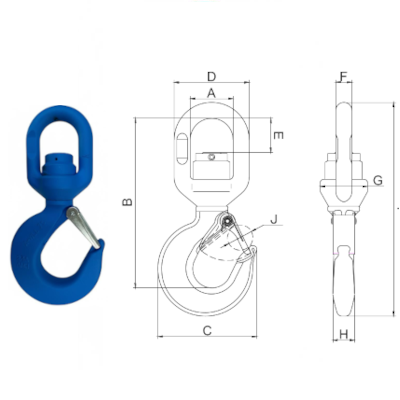

Alloy Swivel Hooks with Ball Bearing and Latch
| Part # | Weight (kg) | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | J (in) |
|---|---|---|---|---|---|---|---|---|---|
| ASH0200BB | 1.35 | 2.98 | 1.63 | 6.65 | 3.84 | 2.76 | 1.26 | 0.55 | 0.91 |
| ASH0300BB | 1.83 | 4.03 | 1.89 | 7.32 | 4.25 | 3.23 | 1.81 | 0.65 | 0.98 |
| ASH0500BB | 3.42 | 7.54 | 2.17 | 8.98 | 5.20 | 3.78 | 2.17 | 0.81 | 1.34 |
| ASH0700BB | 5.2 | 11.46 | 2.44 | 10.59 | 6.46 | 4.29 | 2.13 | 0.93 | 1.97 |
| ASH1100BB | 9.85 | 21.72 | 3.15 | 13.19 | 7.68 | 5.51 | 2.83 | 1.08 | 2.36 |
